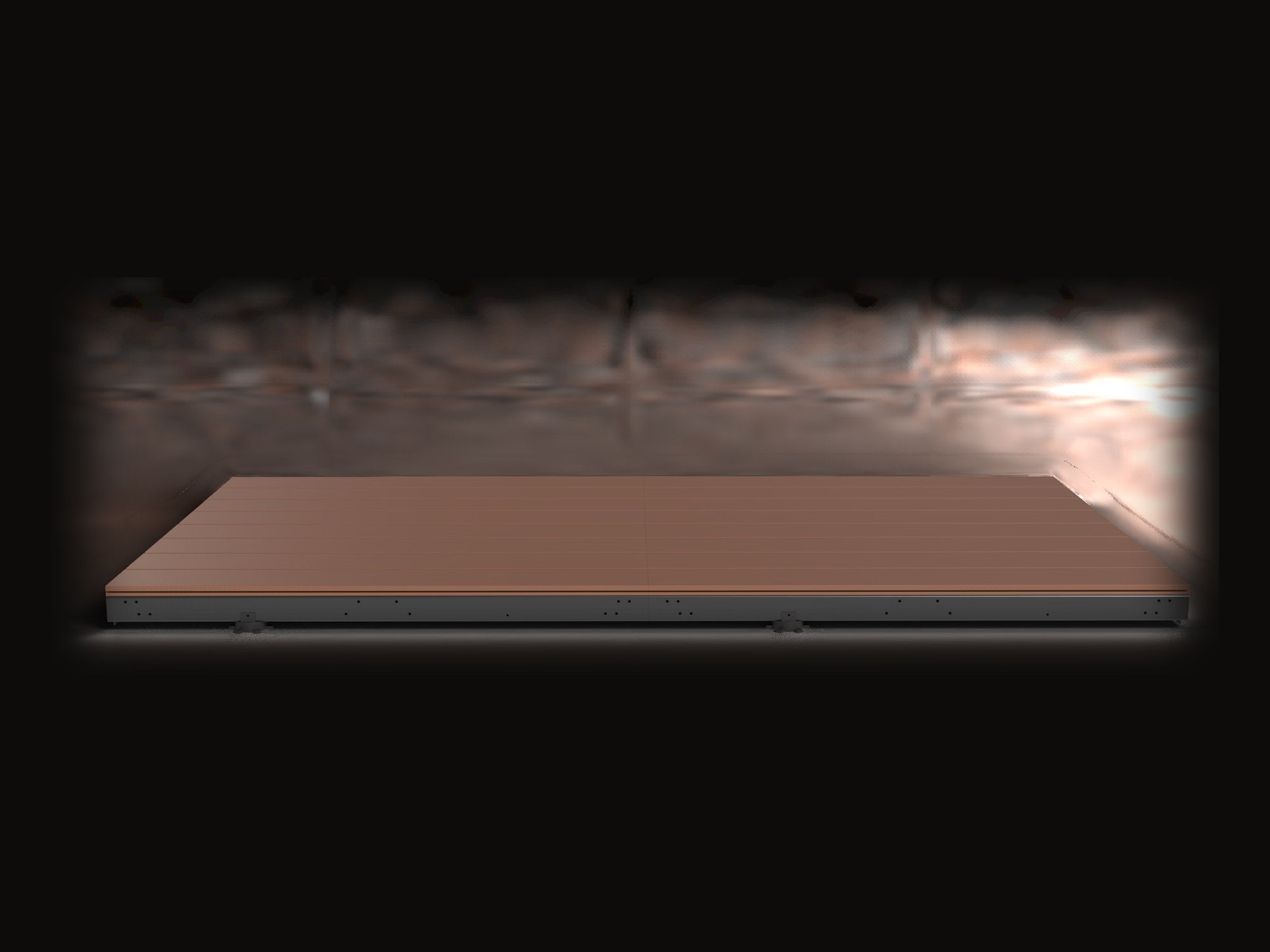

Terraform Deck, Small

2.4 × 1.2 m · 2.88 m² · a complete deck, delivered to your door.

The smallest Terraform Deck. A landing at the back door, a platform under a spa, a level pad for a barbecue and two chairs. It arrives flat-packed on a pallet and goes down in an afternoon.

What's in the box

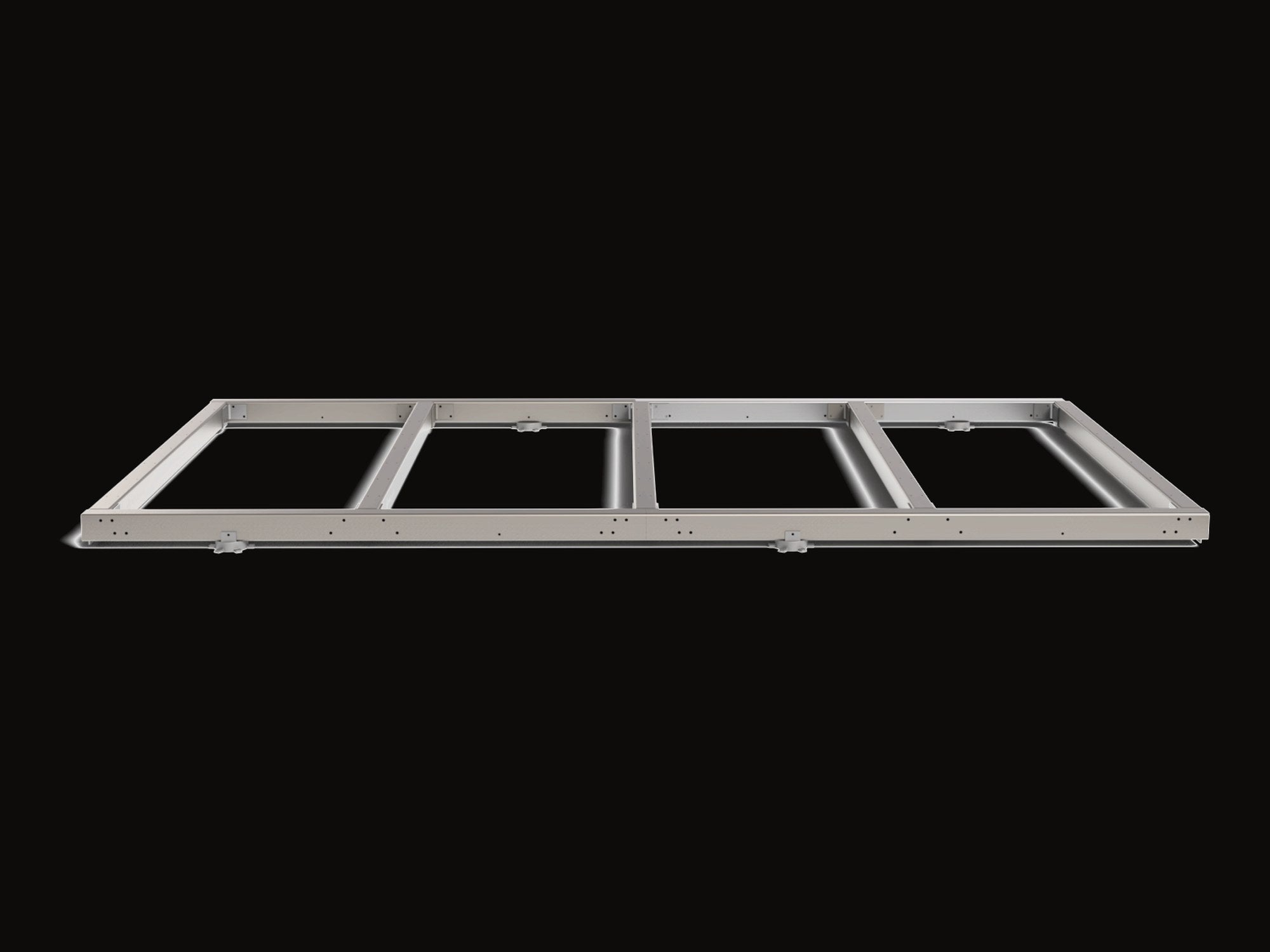

• 2 × aluminium bearers, cut to 2.4 m
• 7 × aluminium joists, cut to 1.145 m
• 4 edge brackets and 10 centre brackets, pre-punched to hold the spacing
• Adjustable pedestal feet
• Decking boards, clips and edge trim
• 110 galvanised hex screws, counted
• Printed instructions, parts checklist and a link to the full build video

What you bring

An 18 V drill, a hammer, a tape measure, gloves, and eye and ear protection. Nothing gets cut, so there is no saw on the list. One person can build it; two is faster.

Why aluminium

The frame is the part of a deck that rots, sags, burns and gets eaten. Ours is extruded aluminium 6005-T6, so none of that happens. Under 3 kg per metre, so a full bearer goes over one shoulder. Termite proof, rot proof, non-combustible, and it never needs a coat of anything.

Numbers

• Design live load: 4.0 kPa. Held 1800 kg over 2 m² for ten minutes in test.
• Four-point bend, peak load: 24.02 kN
• Profile: 55 × 45 mm · build height under 100 mm
• Designed to AS 1170 and AS 1664.1
• Fire: heat evolved index ≤ 4, spread of flame index ≤ 5. Slip resistance R10.
• 10-year warranty. Made in Australia.

Kits bolt to kits, so two Smalls make a 4.8 × 1.2 m deck. Foundations must be prepared to local requirements; permits and footing certification are the installer's responsibility.
